Product Introduction: Poseidon is a manufacturer of nanofiltration membrane products in China. We have patented technology, mature process, our nanofiltration membrane price is also advantageous, and the quality is also guaranteed. If you want to purchase this product or become our distributor, we look forward to being your long-term reliable partner.
Tubular Material Separation Membrane
Products Introduction
Poseidon spiral tube membrane product registration trademark Spi-Tub-Mem ® (abbreviated as STM) includes pressure type coiled tube membrane components and immersion type coiled tube membrane components. The product types are divided into ultrafiltration membrane, special nanofiltration, and nanofiltration membrane (STM-NF) series products, The interception molecular weight includes three commonly used interception molecular weight nanofiltration membranes: NF300, NF500, and NF1000, as well as special nanofiltration membranes that only remove organic matter without desalination.
Product features
It can effectively remove specific molecular weight organics in industrial reverse osmosis concentrated water and garbage leachate nanofiltration or reverse osmosis concentrate under low-pressure conditions, with only a very small amount of retention of dissolved salts in wastewater, showing excellent deorganization performance. It also has the following characteristics:
Wider water inlet flow channel, filtration without dead angle, effectively enhance the flow rate of the membrane surface, reduce the concentration of the membrane surface polarization.
It has high loading density, which effectively improves the filtration efficiency and reduces the floor space of the equipment.
Strong anti-pollution ability, stable operation and low energy consumption.
Has low investment and operating costs.
Fields of application
Material Concentration and Separation
COD Removal from Reverse Osmosis Concentrate
COD removal from waste leachate concentrate
Separation and concentration of organic matter in industrial wastewater
Preparation of organic carbon sources from kitchen wastewater
Product Specification

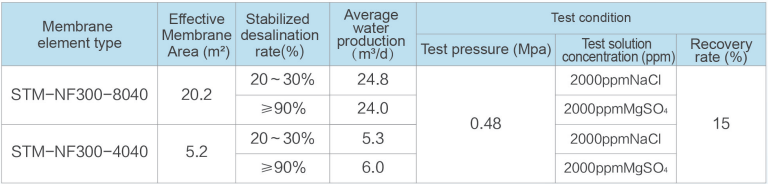

STM-NF300 Industrial Module Model and Performance Parameter Sheet
Test conditions: Inlet water temperature 25℃; Inlet water pH 7-8

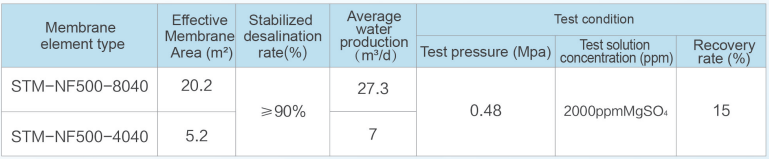

STM-NF500 Industrial Module Model and Performance Parameter Sheet
Test conditions: Inlet water temperature 25℃; Inlet water pH 7-8

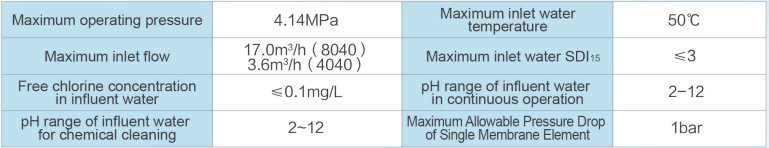

operating condition

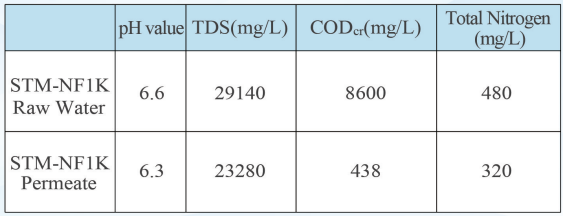

Inlet and outlet water quality indexes of sprial material membrane
（From left to right: feed water, outlet water 1, outlet water 2, concentrated water）
