Product Introduction: Poseidon is a manufacturer of MBR flat membrane products in China. We have patented technology, mature process, and our MBR flat membranes also have competitive price and guaranteed quality. If you want to purchase this product or become our distributor, we look forward to being your long-term reliable partner.
1. Product features
a:Semi-interpenetrating network cross-sectional structure: The membrane functional layer and the support layer form a semi-interpenetrating network, and the regulation of the structure does not affect the welding strength between the membrane and the ABS support plate, but also improves the interlayer adhesion fastness and burst strength between the two, and effectively prolongs the service life of the high-end filter membrane and the resistance to strong backwash.

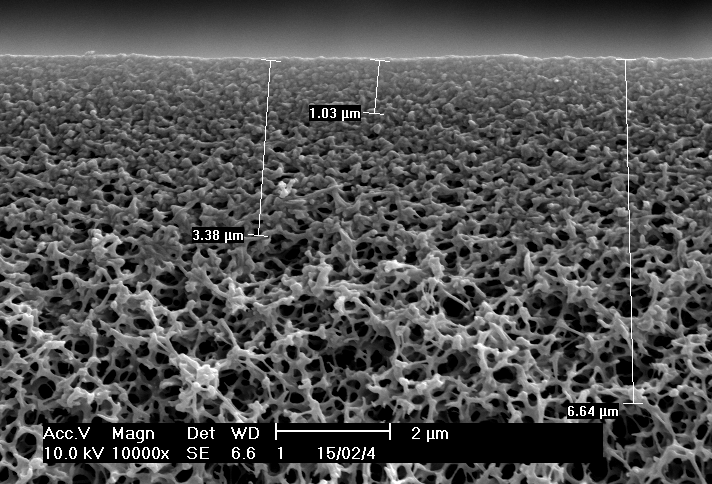

b：Typical sponge-like cross-sectional structure: the ultra-thin hydrophilic cortex, paracortex and porous support layer gradually change to a sponge-like and topological structure from top to bottom, which gives the high-end filter membrane a higher porosity, and the capillary force during the application process reduces the membrane pore resistance, effectively improving the filtration flux in the application of high-end membrane applications.

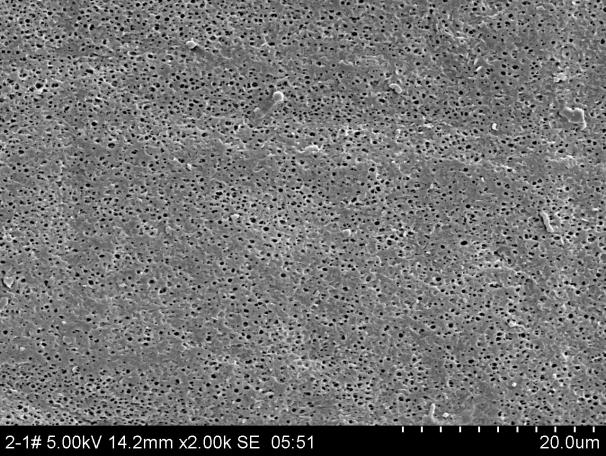

c:Small pores and narrow pore size distribution in the cortex: small surface pore size (average pore size of about 70nm), uniform pore size distribution, narrow pore size distribution, and small pore size coefficient of variation, which improves the surface filtration effect of high-end membrane series products, reduces the risk of deep pollution, and effectively improves the restorative cleaning depth in industrial applications.
2. Product specifications
Specifications and parameters of flat membrane elements
Model | PSD15 | PSD08 | PSD10 |
The effective area of the membrane（m2） | 1.5 | 0.8 | 0.1 |
Membrane flux(L/piece·day) | 540～900 | 285～480 | 36～60 |
Membrane pore diameter（μm） | 0.1 (Customizable) | ||
Membrane material | PVDF、CPVC、PTFE | ||
Liner material | ABS | ||
Dimensions（mm） | 490×1750×7.5 | 490×1000×7 | 210×310×5 |
weight（kg） | 5.5 | 3.0 | 0.3 |
Note: (1). The membrane flux in the table is the initial flux of a monolithic membrane element when treating municipal wastewater at 25°C and vacuum.
(2). When treating different water quality, the user should conduct sufficient tests to determine the design value of the membrane flux.
3. Engineering cases

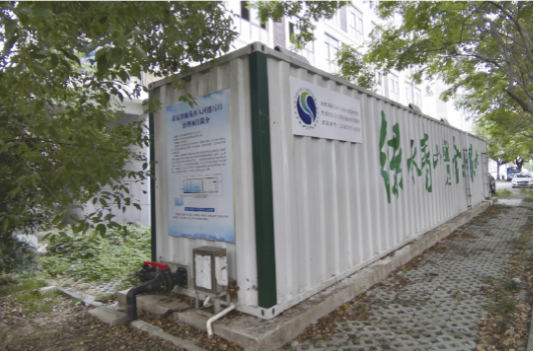

River Governance——Jiangsu, Changzhou, Xuejia Yandang River Project (1000m3/d)
Scale: Yandang River 1.9km, inferior five categories, mild black odor, integrated equipment daily processing capacity of 1,000 tons.
Process: river sediment improvement + sewage interception in the soft enclosure channel + integrated AO-MBR, in which the aerobic section adopts flat plate MBR membrane bioreactor technology.
Effluent index: surface water class IV
