poseidon is a manufacturer of MBR curtain film products in China. We have patented technology, mature process, and our MBR curtain film price is also advantageous, and the quality is also guaranteed. If you want to purchase this product or become our distributor, we look forward to being your long-term reliable partner.
Selling points: Exemet's MBR curtain membrane has these advantages: self-cleaning, ultra-low pressure, ultra-large flux, super anti-pollution ability, high peel strength, long service life, high tensile strength, high breaking strength, low energy consumption, long chemical cleaning cycle, low operating cost;

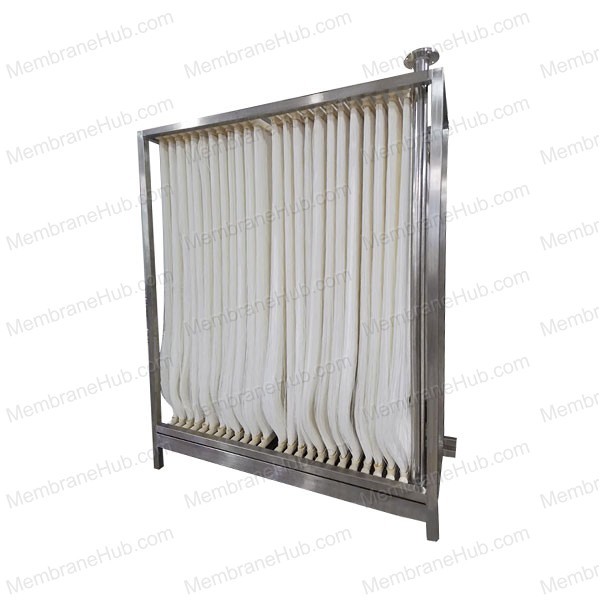

Product information introduction: self-cleaning, high-flux, mosaic hollow fiber ultrafiltration membrane preparation patented technology, the use of unique membrane formula and specific membrane process to produce hollow fiber ultrafiltration membrane has ultra-thin separation layer, typical sponge-like section structure characteristics, with higher tensile strength, at the same time has a strong hydrophilic retention performance, in the process of water treatment shows high solution flux, strong pollution resistance, easy to clean after pollution and other technical advantages, essentially solve the existing hollow fiber ultrafiltration membrane low strength, Poor anti-pollution performance and other problems.
Parameters of the product:
Model | PSD-MBR-HF10 | PSD-MBR-HF15 | PSD-MBR-HF20 |
Specification | 537×40×1000 | 537×40×1500 | 537×40×2000 |
The effective area of a single membrane（㎡） | 10 | 15 | 20 |

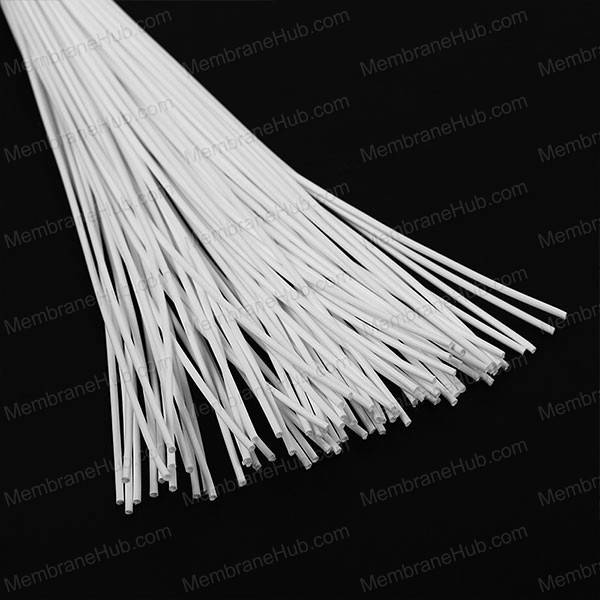

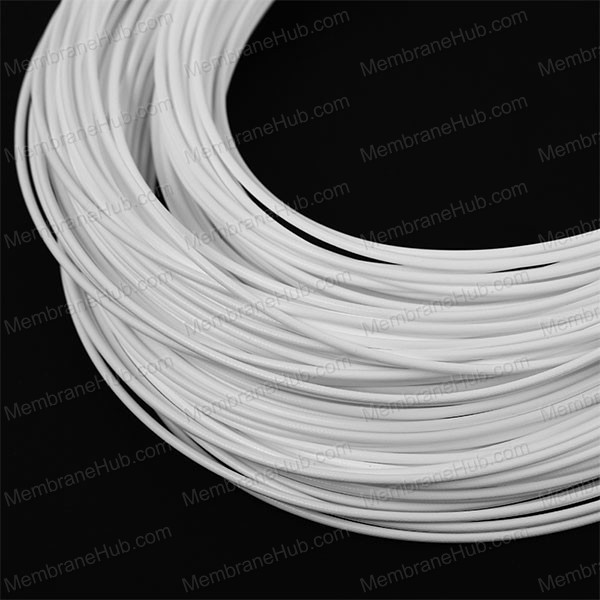

Membrane filaments ID/OD(mm) | 1.3/2.0 | 1.3/2.0 | 1.3/2.0 |
The distance between the center of the sump(mm) | 1000 | 1500 | 2000 |
Diameter of the sump connection ID/OD(mm) | 32.7/39.7 | ||
Filtration accuracy | 0.1μm | ||
Breaking force（N） | ≥150 | ||
Membrane filament material | Hydrophilic PVDF of the separating layer and micro-modified PET of the reinforcing material | ||
Encapsulant | Epoxy + polyurethane | ||
Manp material | ABS | ||
Water harvesting method | Collect water at both ends | ||
Mode of operation | Immersion suction filtration | ||
Average design flux of sewage operation（LMH） | 15~25 | ||
Recommended operating temperature（℃） | 15~35 | ||
Recommended working pH range | 6~8 | ||
Maximum transmembrane differential pressure（MPa） | 0.035 | ||
Ultimate transmembrane differential pressure（MPa） | 0.08 | ||
Applications:
It can be used for municipal sewage treatment, integrated sewage treatment plant, advanced treatment of industrial wastewater and reclaimed water reuse, pretreatment of seawater desalination or brackish water desalination, landfill and compost leachate treatment, etc.
Poseidon (Jiangsu) New Material Technology Co., Ltd., is a high-tech enterprise focusing on the integration of independent research and development, production, sales and service of high-throughput and constant hydrophilic MBR series membrane products.
The company's existing super-hydrophilic MBR full range of core technology products, super-hydrophilic series of membrane products include: curtain membrane, flat membrane, tubular membrane, external pressure and immersion hollow fiber ultrafiltration membrane, the above core products can be widely used in municipal sewage, rural sewage, landfill leachate, pharmaceutical wastewater, chemical wastewater, black and odorous water and other water quality moderate and advanced treatment, but also can be used in the concentration and purification of biomedical intermediates, food and beverage turbidity removal and other fields, in the process of sewage resource has mature technical advantages. The company's membrane products break through the boundary between traditional organic membranes and inorganic membranes, and have the performance characteristics of constant hydrophilicity, acid and alkali resistance, high temperature resistance, high flux, and easy recovery of backwash.
The company is located in Xinbei District, Changzhou City, Jiangsu Province, the capital of new energy, and currently has a number of production lines such as automatic high-performance hollow fiber spinning, continuous production equipment for flat diaphragm and membrane elements, and continuous production system for tubular membranes. Based on advanced technology and equipment, with many years of experience and technology, we are committed to the purification and treatment of sewage, and make a modest contribution to improving the increasingly serious problems of water pollution and water shortage.Welcome new and old customers and friends to order, telephone consultation and exchange!
The company is located in Changzhou, Jiangsu, which is one of the central cities in the Yangtze River Delta, an advanced manufacturing base and a famous cultural tourism city. Established in 2023, it is mainly a high-tech enterprise integrating independent research and development, production, sales and service of membrane products. In the process of R&D specialization, product industrialization, and business internationalization, the company continues to accumulate experience and technology, continuously improve production technology, continuously add intelligent production equipment, form a good operation mechanism, high-quality after-sales service, and sincerely invite customers at home and abroad to cooperate and win-win.

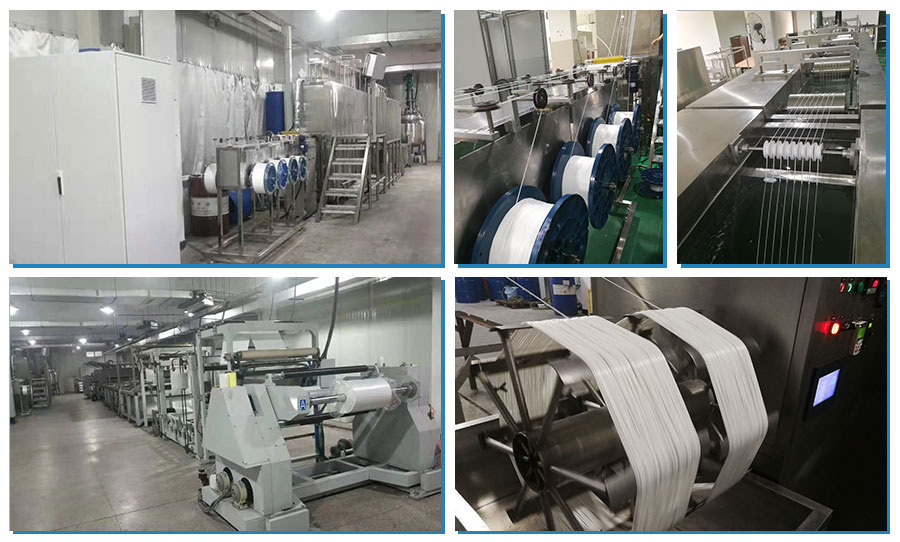

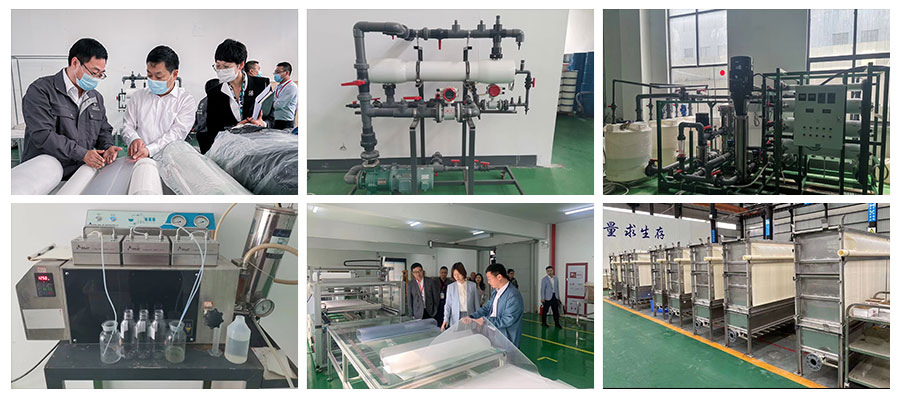

Equipment display

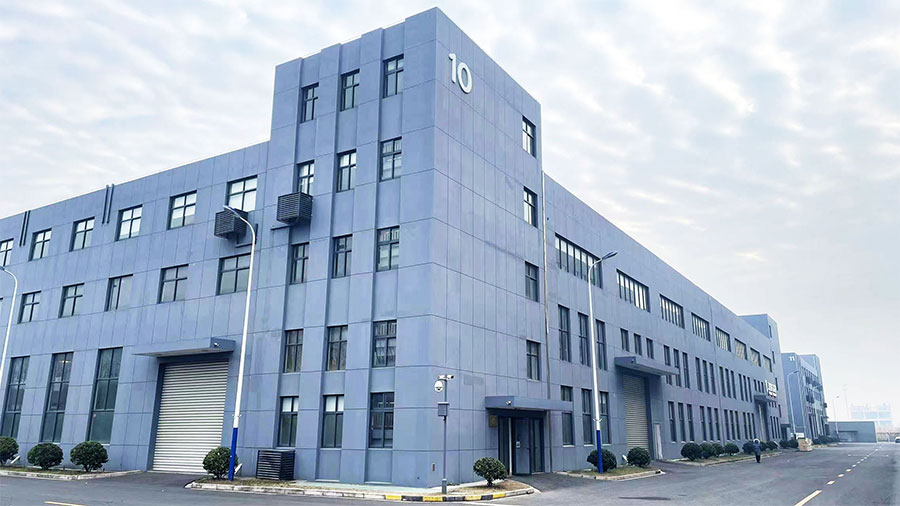

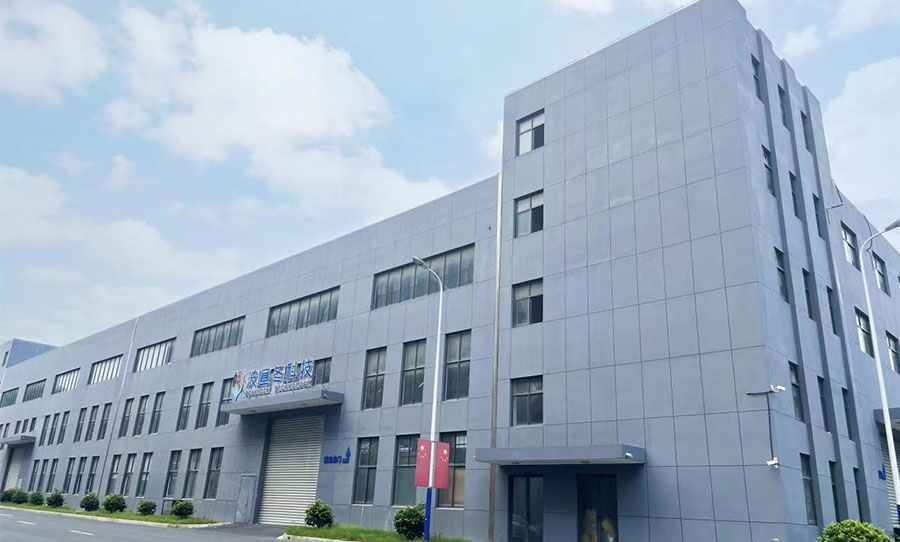

Factory scenery
